Your First Session

This walkthrough picks up where Unity Setup left off. You'll authenticate, start a session, stream video, and watch it from Postman.

Step 1 - Enter Play Mode​

Press Play in the Unity Editor. The Enterprise manager will initialise and you'll see the runtime controls in the Inspector.

Step 2 - Set Your Bearer Token​

You need a Pool User Token to authenticate the client. Generate one in Postman - see Authentication.

  1. In Play Mode, find the Authentication section in the Inspector.
  2. Paste your token into the Bearer Token field and click Set Bearer Token.

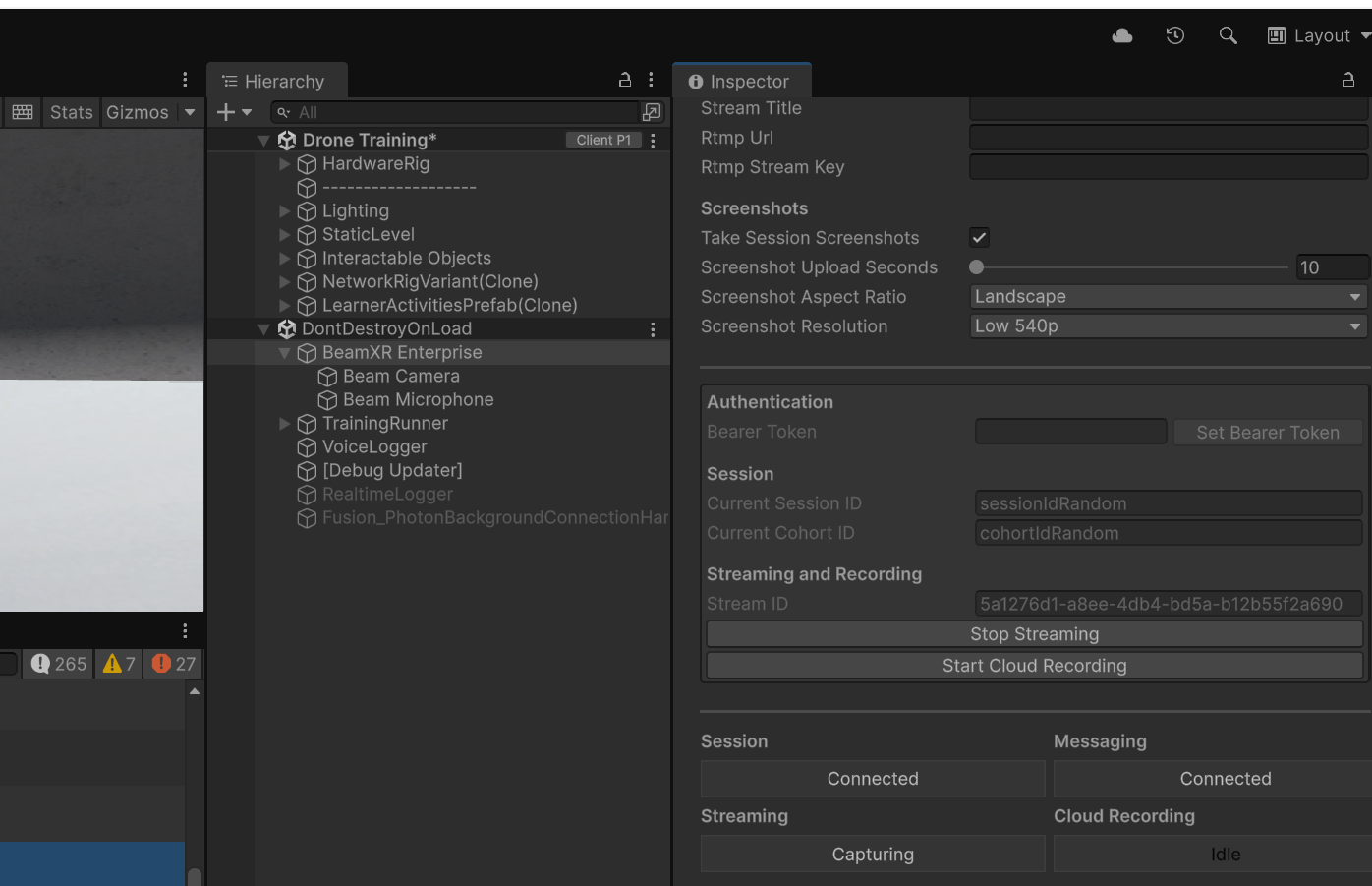

BeamXR Enterprise runtime - set Bearer Token, Session ID, and Cohort ID

Step 3 - Configure Session and Cohort ID​

In the Session section of the Inspector:

  1. Set a Current Session ID - this must be unique per session and contain only alphanumeric characters (letters and numbers, no spaces or special characters).
  2. Set a Current Cohort ID - any string you choose to group related sessions (e.g. class9blesson3, qasprint22).
warning

Session IDs must be unique and alphanumeric only. Reusing a session ID or including special characters will cause errors.

Step 4 - Start the Session​

Click the session start button. The status indicators will update:

  • Session → Connected
  • Messaging → Connected

Step 5 - Start Streaming​

Click Start Streaming in the Inspector. You'll see:

  • Streaming → Capturing
  • A Stream ID will appear

The SDK is now streaming video and sending events (device health, screenshots) to the API automatically.

Step 6 - Get the Session in Postman​

Switch to Postman. Make sure you have a valid M2M token, then retrieve your session:

GET /sessions/{SessionId}

The response includes all events for the session. Look for the StreamStarted event - it contains the Streaming Session ID.

{
  "id": "f47ac10b-58cc-4372-a567-0e02b2c3d479",
  "sessionId": "a1b2c3d4-5678-90ab-cdef-1234567890ab",
  "eventType": "StreamStarted",
  "timestamp": 1709049600000,
  "streamingSessionId": "stream-9876-5432-fedc-ba0987654321"
}

Step 7 - Watch the Stream​

Using the Streaming Session ID from the previous step:

GET /sessions/{SessionId}/streams/{StreamingSessionId}/Watch

This returns a URL and token. Use these with the example web player to view the live stream.

note

Example web player code snippet will be provided in a future update.

What's Next?​

You now have a working end-to-end flow. From here you can:
